Image in cardiology
Open Access
Shock and anterior myocardial infarction: Beyond the initial clinical evidence
Choque e enfarte da parede anterior: além da primeira evidência clínica
Visitas
6419
Ana Sofia Correiaa,b,
Autor para correspondência
sofiakorreia@gmail.com

Corresponding author.
, Rui André Rodriguesa, Mariana Vasconcelosa,b, Alexandra Gonçalvesa,b, Sérgio M. Sampaioc, Maria Júlia Maciela,b
a Cardiology Department, Centro Hospitalar de São João, Porto, Portugal
b Faculty of Medicine, Porto University, Porto, Portugal
c Vascular Surgery Department, Centro Hospitalar de São João, Porto, Portugal
Este item recebeu

Under a Creative Commons license
Informação do artigo
Texto Completo
Baixar PDF
Estatísticas
Figuras (1)
Texto Completo
Introduction

Cardiogenic shock is a state of inadequate tissue perfusion due to cardiac dysfunction, most commonly caused by acute myocardial infarction. Mortality rates for patients with cardiogenic shock remain frustratingly high, ranging from 50% to 80%. This high mortality can be counteracted by urgent revascularization and these patients benefit from a prompt invasive procedure. We present an unusual case of a patient admitted for an acute anterior infarction and presumable subsequent cardiogenic shock. The urgent coronary angiography revealed an acute stent thrombosis in the anterior descending coronary artery, but the aortography showed that the original cause of shock was actually an abdominal aneurysm rupture. The stent thrombosis and acute anterior infarction were in fact a complication of a hypoperfusion state due to hypovolemic shock.

Case report

A 68-year-old man with hypertension, dyslipidemia and ischemic heart disease, with a previous infarction in 2001 when he underwent percutaneous angioplasty of the anterior descending coronary artery, presented at our emergency room with shock, after being found at home unconscious. The patient was confused but was able to report abdominal/dorsal pain (poorly localized) previous to the syncope. The electrocardiogram showed an anterior myocardial infarction (Figure 1, panel A) and the echocardiogram confirmed impaired contractility in the anterior descending artery myocardial territory. Along with fluids and pharmacological therapy, the patient underwent coronary angiography that revealed acute stent thrombosis in the proximal segment of the anterior descending coronary artery (Figure 1, panel B). TIMI 3 flow was reestablished immediately after thrombus aspiration (Figure 1, panel C). Arterial access was obtained via the femoral artery and during the progression of the catheter an abdominal aorta enlargement was suspected. The aortogram confirmed the presence of an abdominal aneurysm with slow flow and subtraction images suggestive of thrombus (Figure 1, panel D, arrow). Computed tomography was promptly performed and confirmed the presence of a ruptured abdominal aneurysm (Figure 1, panels E and F, white arrows) surrounded by a large retroperitoneal hematoma (Figure 1, panels E and F, red arrows). The patient underwent urgent vascular surgery with successful immediate results. The postoperative period was long with multiple complications (infection and abdominal reintervention for correction of bowel perforation due to ischemic colitis). Despite the severity of the initial clinical picture and subsequent complications, all of the latter were promptly and completely resolved and the patient was discharged asymptomatic after 43 days of hospital stay. At nine-month follow-up he was asymptomatic, with preserved left ventricular ejection fraction, completely autonomous and in good general health. This case report highlights the need to observe the patient as a whole, and demonstrates that good results can be achieved, even in serious medical conditions, with expert diagnosis and immediate treatment.

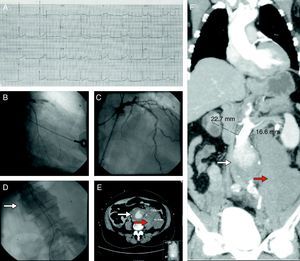

Figure 1.

(Panel A) Electrocardiogram showing ST-segment elevation in leads V1–V4 compatible with an anterior myocardial infarction. (Panel B) Coronary angiography showing acute stent thrombosis in the proximal segment of the anterior descending coronary artery. (Panel C) Coronary angiography after thrombus aspiration showing reestablishment of TIMI 3 flow in the anterior descending coronary artery. (Panel D) Aortography revealing an abdominal aneurysm with slow flow and subtraction images suggestive of thrombus (white arrow). (Panels E and F) Computed tomography imaging showing a ruptured abdominal aneurysm (white arrow) surrounded by a large retroperitoneal hematoma (red arrow).

(0.72MB).
Conflicts of interest

The authors have no conflicts of interest to declare.

Copyright © 2012. Sociedade Portuguesa de Cardiologia
Baixar PDF
Idiomas
Revista Portuguesa de Cardiologia
Opções de artigo
Ferramentas
en pt

Are you a health professional able to prescribe or dispense drugs?

Você é um profissional de saúde habilitado a prescrever ou dispensar medicamentos

Ao assinalar que é «Profissional de Saúde», declara conhecer e aceitar que a responsável pelo tratamento dos dados pessoais dos utilizadores da página de internet da Revista Portuguesa de Cardiologia (RPC), é esta entidade, com sede no Campo Grande, n.º 28, 13.º, 1700-093 Lisboa, com os telefones 217 970 685 e 217 817 630, fax 217 931 095 e com o endereço de correio eletrónico revista@spc.pt. Declaro para todos os fins, que assumo inteira responsabilidade pela veracidade e exatidão da afirmação aqui fornecida.
